Name: VAPE /5, /6 105mm Complete System 2-Spark
Brand: VAPE
SKU: 70679994K
Price: 899.95 USD
Availability: OutOfStock

Description Instructions Reviews Accessories Bike Fitment

Description

VAPE /5, /6 105mm Complete System 2-Spark

The VAPE (pronounced VaahPeh) is a top quality, European product that will “modernize” the electrical systems on your classic BMW, providing improved reliability, performance as well as passive and active safety. This set will replace the entire charging and ignition system with reliable, modern components.

This set consists of a complete system including Rotor, Stator, Coil-CDI, Regulator, and other hardware. Replaces the stock 12V alternator (including diode plate and regulator) as well as all ignition parts (points or hall element). There is no need for changes to the engine casing. This D/C system will run head lights, tail lights, turn signals and charge the battery. It is a magnet based alternator with integrated solid state ignition; output at 12V/190W DC. The alternator is brushless and there are no parts to wear out, making this system maintenance free.

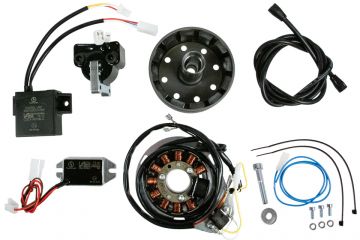

Included

Pre-assembled Stator Rotor
Flywheel (rotor)
Electronic Advance Unit
Regulator/Rectified
Twin Ignition Coils
Relay with cables
Rotor bolts M8 with washer
Three M5 screws
Installation cables/hardware

The VAPE ignition system is a magneto based generator with integrated, fully electronic ignition. It is equipped with a tiny AC regulator to run lighting equipment, thus eliminating the need to run a battery. VAPE external flywheel type ignitions are an analog type, CDI ignition with 80-100 watts of 12-volt lighting capacity capable of delivering up to 40,000 volts.

Advantages

Does not require changes on crankcase or any other permanent modifications
Timing may now be fine tuned without taking the rotor off by turning body in long holes
Solid state ignition and advance
Reliable ignition with solid spark
Improved starting performance, better fuel burning
Eliminates points, condenser, centrifugal advance and upgrades the charging system
The system is technically capable of running without battery

Important note:

VAPE instructions - "not for BMW models with lightened flywheel" such as e.g. aluminum flywheels. VAPE systems are exclusively destined to replace stock ignition systems in classic and vintage motorcycles whose engine characteristics have not been modified aftermarket.
Larger cc BMW with older e-starter might have starting problems with this systems. The starter does not reach the needed starting revs for the engine to start. For this reason the R90S and R100 models are excluded from fitment.

Additional Information:

For /6 models manufactured prior to 09/75¹
Does not support existing electronic revolution counter, rev-meter/tachometer
Only 190 watts, which is more than adequate but less electric power than the stock alternator
Please do not use any spark amplifying cables, this will disturb the system and possibly damage it
Do not use spark plugs with an internal suppression resistor (e.g. spark plugs coded with an "R" for resistor)

¹The diameter of the original alternator stator was changed from 105mm to 107mm in 09/75. If you are unsure which version you have, we suggest removing the alternator stator and carefully measuring the diameter across the part of the stator that makes contact with and is fitted to the timing cover.
